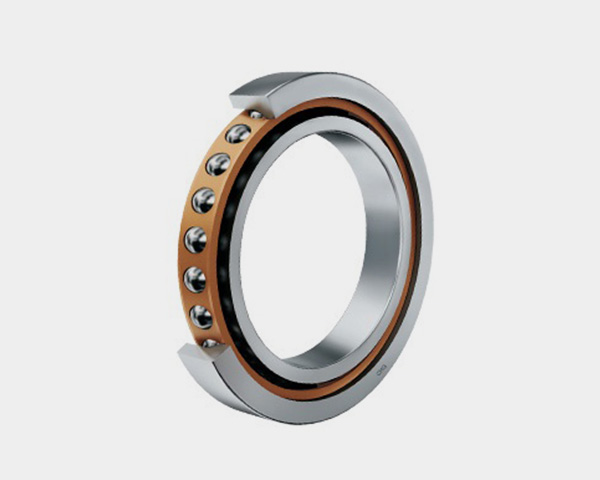

Angular Contact Ball Bearings

Features: Inner Diameter: 150-1250mm
Outer Diameter: 190-1750mm
Weight: 1.32-1600kg
Structures: Separable, Nonseparable
Type: 70000,6000

Category:

The single row angular contact bearings can support  the axial load in one specific direction. Its axial loading capacity depends on the contact angle α. The bigger the contact angle is, the higher its axial bearing capacity is. The typical contact angle is 15°, 25°, and 40°.

This kind of bearing is divided in two types: separable and inseparable types.

Metal solid cages are mainly used in single row angular contact ball bearings. Phenolic cloth laminated tube solid cages are usually used for high speed applications, and the maximum temperature is 120°C.

Technical data

Boundary dimensions Basic load ratings Designations Mass Installation dimersion Limiting
mm kN Current Original kg mm r/min
d D B rmin r1min Cr Cor damin Damax ramax rbmax Grease oil
150 190 20 1.1 0.6 53.5 74.5 71830AC – 1.32 157 180 1 0.6 2400 3400
210 28 2 1 90 120 71930AC – 3 160 200 2 1 2400 3400
225 35 2.1 1.1 153 130 7030 AC 46130 4.83 162 213 2 1 2000 3000
270 45 3 1.1 241 218 7230 AC 46230 12.1 164 256 2.5 1 1800 2600
320 65 4 1.5 360 375 7330 AC 46330 25.8 168 302 3 1.5 1700 2400
320 65 4 1.5 310 310 7330 B 66330 25.8 168 302 3 1.5 1600 2200
160 240 38 2.1 1.1 161 139 7032 AC 46132 5.81 172 228 2 1 2000 3000
279 40 2.1 1.1 204 182 – 46932 11.6 2000 2800
290 48 3 1.1 262 247 7232 C 36232 14.5 174 283 2.5 1 1800 2600
290 48 3 1.1 249 232 7232 AC 46232 14.5 174 276 2.5 1 1700 2400
170 215 22 1.1 0.6 80 110 71834C – 2 2000 2800
230 28 2 1 110 140 71934C – 3.3 180 220 2 1 2000 3000
260 42 2.1 1.1 193 171 7034 AC 46134 8.25 182 248 2 1 2000 2800
310 52 4 1.5 282 275 7234 AC 46234 17.4 188 292 3 1.5 1600 2200
310 52 4 1.5 320 325 7234 C 36234 17.2 188 292 3 1.5 1700 2400
180 280 46 2.1 1.1 194 230 7036 AC 46136 9.8 192 268 2 1 1600 2200
320 52 4 1.5 335 345 7236 C 36236 18.1 198 302 3 1.5 1500 2000
320 52 4 1.5 315 325 7236 AC 46236 18.1 198 302 3 1.5 1500 2000
380 75 4 1.5 405 445 7336 B 66336 37 198 362 3 1 1300 1800
190 260 33 2 1 139 177 71938AC 1046938 4.45 200 250 2 1 1800 2200
290 46 2.1 1.1 214 200 7038 AC 46138 10.7 202 278 2 1 1600 2200
340 55 4 1.5 280 370 7238B – 23 208 322 3 1 1500 2000
200 250 24 1.5 1 90 130 71840C – 2.5 208.5 241.5 1.5 1 1800 2200
Boundary dimensions Basic load ratings Designations Mass Installation dimersion Limiting
mm kN Current Original kg mm r/min
d D B rmin r1min Cr Cor damin Damax ramax rbmax Grease oil
200 280 38 2.1 1.1 150 210 71940AC – 7.1 212 268 2 1 1600 2200
310 51 2.1 1.1 253 248 7040 AC 46140 14 212 298 2 1 1500 2000
360 58 4 1.5 375 410 7240 C 36240 25.2 218 342 3 1.5 1400 1900
360 58 4 1.5 355 385 7240 AC 46240 25.2 218 342 3 1.5 1300 1800
360 58 4 1.5 310 325 7240 B 66240 25.8 218 342 3 1.5 1200 1700
210 240 15 1.1 1.1 30 50 70842X3 – 1 222 287 2 1 1800 2200
220 300 38 2.1 1.1 200 250 71944AC – 7.2 232 288 2 1 1800 2200
400 65 4 1.5 358 482 7244 AC 46244 38.5 1100 1600
240 320 38 2.1 1.1 203 285 71948 C 1036948 8.37 252 308 2 1 1200 1700
320 38 2.1 1.1 181 260 71948AC 1046948 8.37 252 308 2 1 1100 1600
320 38 2.1 1.1 161 233 71948 B 1066948 8.43 252 308 2 1 1000 1500
320 48 2.1 1.1 184 190 72948AC 2046948 10 252 308 2 1 1100 1600
440 72 4 1.5 420 490 7248 B 66248 50.9 258 422 3 1.5 1000 1500
260 320 28 2 1 127 190 71852AC 1046852 4.85 270 310 2 1 1400 1900
360 46 2.1 1.1 242 345 71952AC 1046952 13.5 272 348 2 1 1300 1800
400 65 4 1.5 291 431 7052 B 66152 28.5 278 382 3 1.5 1000 1500
480 80 5 2 456 702 7252 B 66252 66 900 1300
280 350 33 2 1 140 216 71856AC 1046856 7.2 290 340 2 1 1200 1700
380 46 2.1 1.1 226 337 71956AC 1046956 15 292 368 2 1 1100 1600
420 65 4 1.5 287 450 7056B 66156 30 298 402 3 1.5 900 1400
320 400 38 2.1 1.1 190 290 71864 – 10 332 388 2 1 800 1000
440 56 3 1.1 350 550 71964 – 25.5 334 426 2.5 1 800 1000
340 460 56 3 1.1 292 510 71968 B 1066968 27.5 354 446 2.5 1 800 1000
520 82 5 2 410 700 7068B 66168 63 362 498 4 2 800 1000
360 480 56 3 1.1 350 600 71972 – 29 374 466 2.5 1 800 1000
Boundary dimensions Basic load ratings Designations Mass Installation dimersion Limiting
mm kN Current Original kg mm r/min
d D B rmin r1min Cr Cor damin Damax ramax rbmax Grease oil
360 540 82 5 2 530 960 7072C 36172 62.4 382 518 4 2 800 1000
540 82 5 2 468 855 7072AC 46172 62.5 382 518 4 2 850 1200
650 95 6 3 585 1125 7272B 66272 145 700 950
380 440 25 3 1.1 110 178 7676 B 66776 7.1 960 1200
480 31 2 1 171 310.5 70876AC 7046876 13.5 850 1200
480 46 2.1 1.1 261.9 450 71876AC 1046876 18 392 468 2 1 1700 2400
520 65 4 1.5 369 661.5 71976AC 1046976 40.5 850 1200
520 82 4 1.5 407 733 72976AC 2046976 48.9 700 900
560 82 5 2 456 855 7076AC 46176 65.5 402 528 4 2 800 1100
560 82 5 2 421 792 7076B 66176 65.5 402 528 4 2 750 1000
400 540 65 4 1.5 380.7 702 71980AC 1046980 42 800 1100
600 90 5 2 544.5 1062 7080AC 46180 90.5 750 1000
600 90 5 2 474 918 7080B 66180 90.5 700 950
720 103 6 3 656.2 1350 7280B 66280 190 600 800
420 560 65 4 1.5 380.7 720 71984AC 1046984 44.5 434 546 2.5 1 750 1000
560 65 4 1.5 327 603 71984B 1066984 44.5 434 546 2.5 1 700 950
620 90 5 2 544.5 1062 7084AC 46184 95 750 1000
620 90 5 2 486 954 7084B 66184 95 670 900
440 600 74 4 3 456.3 936 71988AC 1046988 61 750 1000
650 94 6 3 585 1186 7088AC 46188 100 700 950
650 94 6 3 514 1060 7088B 66188 100 468 622 5 2.5 630 850
460 540 35 2.1 1.5 280 520 S7692 6792 14 472 528 2.5 1 750 1000
580 37 2.1 1 230 504 70892AC 7046892 24.5 474 566 2.5 1 750 1000
580 56 3 3 334 689 71892AC 1046892 34.5 474 566 2.5 1 750 1000
620 74 4 1.5 456 936 71992AC 1046992 58 850 1200
Boundary dimensions Basic load ratings Part number Mass Installation dimension Limiting  speeds
mm kN Current Original kg mm r/min
d D B rmin r1min Cr Cor damin Damax ramax rbmax Grease Oil
480 600 56 3 1.1 415 820 71896 – 35.5 494 686 2.5 1 850 1200
700 100 6 3 632 1377 7096 AC 46196 125 508 672 5 2.5 630 850
700 100 6 3 561 1200 7096 B 66196 125 508 672 5 2.5 560 750
500 620 37 2.1 1.1 248 558 708/500 AC 70468/500 27 514 606 2.5 1 670 900
620 56 3 1.1 351 765 718/500 AC 10468/500 38 514 606 2.5 1 670 900
670 78 5 2 498 1098 719/500 AC 10469/500 78 520 650 4 2 630 850
720 100 6 3 644 1440 70/500 AC 461/500 130 528 692 5 2.5 600 800
720 100 6 3 573 1260 70/500 B 661/500 130 528 692 5 2.5 560 750
508 600 30 2.1 1.5 150 320 76/508 – 16.5 670 900
530 650 56 3 1.1 369 837 718/530 AC 10468/530 39.5 544 636 2.5 1 1100 1600
650 56 3 1.1 351 810 718/530 B 10668/530 39.5 544 636 2.5 1 630 850
710 82 5 2 556 1206 719/530 AC 10469/530 92 552 688 4 2.1 1000 1500
760 100 6 6 680 1500 307368B – 150 558 732 5 2.5 560 750
780 112 6 3 813 1944 70/530 AC 461/530 175 558 752 5 2.5 560 750
780 112 6 3 666 1530 70/530 B 661/530 175 558 752 5 2.5 500 670
560 680 56 3 1.1 341 837 718/560 AC 10468/560 41.5 574 666 2.5 1 600 800
750 85 5 2 533 1161 719/560 AC 10469/560 105 582 728 4 2 560 750
820 115 6 3 814 1944 70/560 AC 461/560 195 588 792 5 2.5 530 700
600 730 42 3 1.1 304 662 708/600 AC 70468/600 38.5 614 716 2.5 1 560 750
730 60 3 1.1 421 1044 718/600 AC 10468/600 47 614 716 2.5 1 560 750
800 90 5 2 644 1557 719/600 AC 10469/600 125 622 778 4 2 900 1300
870 118 6 3 796 1944 70/600 AC 461/600 230 628 842 5 2.5 480 630
670 820 69 4 1.5 498 1161 718/670 AC 10468/670 77 668 802 3 1.5 850 1200
980 136 7.5 4 1053 2790 70/670 AC 461/670 340 706 944 6 3 430 560
Boundary dimensions Basic load ratings Part number Mass Installation dimension Limiting  speeds
mm kN Current Original kg mm r/min
d D B rmin r1min Cr Cor damin Damax ramax rbmax Grease Oil
710 870 74 4 1.5 546 1467 718/710 AC 10468/710 93.5 728 852 3 1.5 800 1100
950 106 6 3 767 1980 719/710 AC 10469/710 195 738 922 5 2.5 800 1100
1030 140 7.5 4 1071 2925 70/710 AC 461/710 370 746 944 6 3 400 530
750 920 78 5 2 585 1620 718/750 AC 10468/750 110 772 898 4 2 400 530
1090 150 7.5 4 1170 3285 70/750 AC 461/750 445 782 1054 6 3 360 480
800 1150 155 7.5 4 1197 3420 70/800 AC 461/800 500 836 1114 6 3 340 450
850 1030 82 5 2 620 1674 718/850 AC 10468/850 140 872 1008 4 2 340 450
1220 165 7.5 4 1377 4185 70/850 AC 461/850 595 886 1184 6 3 300 400
900 1180 122 6 3 940 2670 719/900 – 350 300 400
1280 170 7.5 4 1404 4410 70/900 AC 461/900 665 936 1244 6 3 280 380
950 1360 180 7.5 4 1467 4680 70/950 AC 461/950 805 986 1324 6 3 240 340
980 1100 60 4 2 515 1450 719/980X1 – 65.6 240 340
1000 1220 100 6 3 831 2475 718/1000 AC 10468/1000 245 1028 1192 5 2.5 260 360
1420 185 7.5 4 1467 4860 70/1000 AC 461/1000 890 1036 1384 6 3 220 320
1060 1500 195 9.5 5 1512 5130 70/1060 AC 461/1060 1050 1104 1456 8 4 200 300
1120 1360 106 6 3 954 3375 718/1120 AC 10468/1120 320 1148 1322 5 2.5 200 300
1580 200 9.5 5 1548 5265 70/1120 AC 461/1120 1150 1164 1536 8 4 190 280
1140 1380 106 6 3 1180 3830 718/1140AC 10468/1140 318 190 280
1180 1660 212 9.5 5 1566 5580 70/1180 AC 461/1180 1350 1224 1616 8 4 170 240
1250 1500 80 6 3 725 2430 708/1250 AC 70468/1250 295 1278 1472 5 2.5 180 260
1500 112 6 3 1026 3510 718/1250 AC 10468/1250 390 1278 1472 5 2.5 180 260
1750 218 9.5 5 1602 5895 70/1250 AC 461/1250 1600 1294 1706 8 4 160 220
