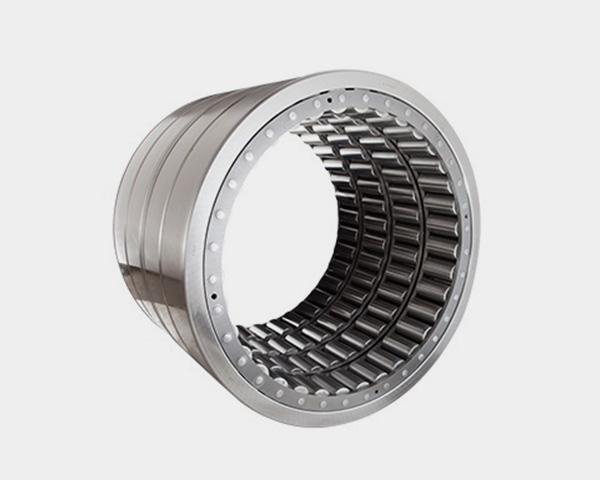

Four Row Cylindrical Roller Bearings

Features: Four row cylindrical roller bearings are especially applied to rolling mills required high speed and precision, for example, wire mills, bar and shape mills, cold or hot sheet mills and cogging mills.
Type: FC series cylindrical roller bearing
FCD series cylindrical roller bearing
FCDP series cylindrical roller bearing.

Category:

Four row cylindrical roller bearings are the one of the main bearings for rolling mills. They are compact structures and high stiffness, and can carry high radial loads but not axial load. Because of inner rings with no rids, inner and outer ring subassembly ( with full set of rollers and cage) can be mounted respectively. Cleaning inspecting and dismounting are very convenient.

Four row cylindrical roller bearings are especially applied to rolling mills required high speed and precision, for example, wire mills, bar and shape mills, cold or hot sheet mills and cogging mills.

Brass solid cages or pin-type cages are mainly used in four row cylindrical roller bearings.

Technical data

Boundary dimensions Basic load ratings Designations Installation dimersion Mass
mm kN mm
d D B Fw rmin r1min Cr Cor Current Original damin Damin Damax ramax rbmax kg
90 140 70 105 1.5 1.1 222 454 FC182870 672718 98 126 132 1 1 4.4
140 74 105 1.5 1.1 222 454 FC182874 – 98 126 132 1 1 4.5
100 140 70 111 1.5 1.1 194 416 FC202870 672820 108 129 135 1 1 3.5
140 90 111 1.5 1.1 290 616 FC202890 – 108 129 135 1 1 4.3
140 104 111 1.5 1.1 335 730 FC2028104 672720 108 129 135 1 1 5.1
145 70 113 1.5 1.1 219 457 FC202970 672720K 108 133 137 1 1 4.1
150 106 113 1.5 1.1 347 736 FC2030106 – 6.8
110 150 80 122 1.5 1.1 241 602 FC223080 – 4.4
170 90 127 2 2 358 754 FC223490 – 121 155 159 2 2 7.9
170 120 127 2 2 605 1060 FC2234120 672722 121 155 159 2 2 10.6
210 170 136.5 2 2 923 1610 FC2242170 – 27.3
120 180 92 137 2 2 375 820 FC243692 – 128 165 169 2 1 8.7
180 105 136 2 2 459 894 FC2436105 672724 128 165 169 2 1 9.8
180 120 136 2 2 477 1061 FC2436120 – 128 165 169 2 1 11.2
130 200 104 149 2 2 478 1006 FC2640104 – 141 183 189 2 2 12.5
200 125 149 2 2 738 1220 FC2640125 672726 141 183 189 2 2 15
140 210 100 158 2 2 503 1096 FC2842100 – 151 192 199 1.5 1.5 12.8
210 106 158 2 2 503 1096 FC2842106 – 151 192 199 1.5 1.5 13.6
210 125 158 2 2 718 1365 FC2842125 672728 151 192 199 1.5 1.5 15.8
210 155 158 2 2 756 1774 FC2842155 – 151 192 199 1.5 1.5 19.6
145 210 155 166 2 2 720 1560 FC2942155 – 154 196 201 1 1 20
225 156 169 2 2 815 1660 FC2945156 672729 156 205 214 2 2 24.4
150 225 120 169 2 2 788 1586 FC3045120 – 161 207 216 1.5 1.5 17.5
225 150 169 2 2 865 1770 FC3045150 – 161 207 216 1.5 1.5 21
230 156 174 2 2 840 1760 FC3046156 672730 161 210 219 2 2 24.6
160 230 130 180 2 2 781 1384 FC3246130 – 171 214 219 1.5 1.5 22.7
230 168 179 3 2 818 2218 FC3246168 – 171 214 219 2 2 24.2
240 124 183 2.1 2.1 690 1543 FC3248124 672732K 172 219 228 2 2 20.6
240 168 183 2.1 2.1 947 2310 FC3248168 672732 172 219 228 2 2 28
260 168 183 2.5 2.1 953 2326 FC3252168 – 38.2
170 230 130 188.5 2 2 680 1720 FC3446130 – 181 215 219 2 2 16.3
230 152 186 2 2 765 1790 FC3446152 – 181 215 219 2 2 17.4
230 180 186 2 2 707 2041 FC3446180 – 181 215 219 2 2 22.7
240 130 190 2 2 830 1830 FC3448130 – 181 222 229 2 2 19
250 170 192 2.1 2.1 1000 2400 FC3450170 672734H 182 232 238 2 2 29.9
260 120 195 2.1 2.1 863 1730 FC3452120 672734Y 182 237 248 2 2 24.2
260 150 195 2.1 2.1 860 1948 FC3452150 – 182 237 248 2 2 30.2
260 170 196 2.1 2.1 1080 2460 FC3452170 – 182 237 248 2 2 34.9
260 225 196 2.1 2.1 1270 3350 FC3452225 – 182 237 248 2 2 43.5
180 250 120 200 2.1 2.1 609 1583 FC3650120 – 191 234 239 2 2 19
250 156 200 2 2 710 1527 FC3650156 672836 191 234 239 2 2 24.7
260 120 202 2.5 2.1 693 860 FC3652120 – 192 242 248 2 2 20.2
180 260 124 202 2.1 2.1 718 1668 FC3652124 672736K 192 242 248 2 2 22.6
260 154 202 2.5 2.1 983 2200 FC3652154 – 192 242 248 2 2 28.2
260 160 202 2.1 2.1 893 2206 FC3652160 – 192 242 248 2 2 29.2
260 168 202 2.1 2.1 1060 2440 FC3652168 672736 192 242 248 2 2 30.7
260 180 202 2.1 2.1 1150 2560 FC3652180 – 192 242 248 2 2 32.9
280 180 207 2.1 2.1 1220 2580 FC3656180 – 43.4
190 260 168 212 2.1 2.1 1020 2600 FC3852168 – 202 244 248 2 2 27.9
265 124 213 2.1 2.1 816 1926 FC3853124 672838K 22.1
270 124 212 2.1 2.1 816 1925 FC3854124 – 201 252 259 2 2 24.2
270 168 212 2.1 2.1 1062 2798 FC3854168 672738K 201 252 259 2 2 32
270 200 212 2.1 2.1 1359 3350 FC3854200 672738 201 252 259 2 2 38.2
280 200 214 2.1 2.1 1540 3350 FC3856200 – 41.5
200 270 120 222 2.1 2.1 615 1626 FC4054120 – 212 254 258 2 2 20.8
270 170 222 2.1 2.1 985 2670 FC4054170 – 212 254 258 2 2 29.5
280 170 222 2.1 2.1 1130 2730 FC4056170 – 212 262 268 2 2 33
280 200 222 2.1 2.1 1360 3460 FC4056200 – 211 262 269 2 2 39.9
200 290 130 226 2.5 2.1 840 1975 FC4058130 – 212 268 278 2 2 29.9
290 192 226 2.1 2.1 1386 3250 FC4058192 672740 212 268 278 2 2 44.9
210 290 192 236 2.1 2.1 1300 3400 FC4258192 – 223 274 277 2 2 40.6
300 170 234 2.1 2.1 1031 2814 FC4260170 – 223 278 287 2 2 41.4
300 210 234 2.1 2.1 1300 3040 FC4260210 672742 223 278 287 2 2 50.3
220 300 192 242 2.1 2.1 1085 3310 FC4460192 – 41.5
310 157 246 2.1 2.1 1132 2627 FC4462157 – 233 286 298 2 2 39.7
310 190 246 2.1 2.1 1283 3503 FC4462190 – 233 286 298 2 2 47.2
310 192 246 2.1 2.1 1250 3070 FC4462192 672744 233 286 298 2 2 48.6
320 210 248 2.1 2.1 1321 3534 FC4464210 – 233 296 307 2 2 59.8
340 192 246 2.5 2.1 1599 3444 FC4468192 – 65.6
230 330 170 260 2.1 2.1 1142 2974 FC4666170 – 243 306 317 2 2 50.2
330 206 260 2.1 2.1 1470 3760 FC4666206 672746 243 306 317 2 2 60.8
365 250 266 3 3 2400 4900 FC4673250 – 244 334 351 2.5 2.5 100
240 330 220 264 2.1 2.1 1373 3789 FC4866220 672748 253 308 317 2 2 58.4
340 192 268 2.1 2.1 1219 3161 FC4868192 – 254 318 326 2.5 2.5 58
360 220 272 2.1 2.1 1600 4065 FC4872220 – 254 330 346 2.5 2.5 83
250 340 170 274 3 3 1141 3281 FC5068170 – 47.9
350 220 278 3 3 1350 3804 FC5070220 672750 264 326 336 2.5 2.5 70.2
360 160 282 3 3 1077 2781 FC5072160 – 57
360 220 282 3 3 1486 4210 FC5072220 – 78.5
260 360 192 287 3 3 1274 3468 FC5272192 – 273 335 347 2 2 62.3
360 200 288 3 3 1483 4217 FC5272200 – 273 335 347 2 2 64.9
360 204 287 2.1 2.1 1620 3990 FC5272204 – 273 335 347 2 2 63.5
370 200 292 3 3 1407 4057 FC5274200 – 274 342 356 2.5 2.5 74.2
370 220 292 3 3 1964 4650 FC5274220 672752 274 342 356 2.5 2.5 77.3
380 220 292 3 3 1516 4353 FC5276220 – 274 354 366 2.5 2.5 91.2
380 280 295 3 3 2250 5680 FC5276280 – 274 354 366 2.5 2.5 110
400 200 296 4 4 1795 4051 FC5280200 – 274 370 391 2.5 2.5 95.6
400 290 296 4 4 2710 7100 FC5280290 – 274 370 391 2.5 2.5 135
270 380 230 298 3 3 1725 4598 FC5476230 672754 283 354 367 2 2 85.3
400 220 305 3 3 1833 4570 FC5480220 – 100
280 375 200 307 3 3 1480 4311 FC5675200 672956 293 356 367 2 2 65.1
380 220 312 3 3 1360 3960 FCD5676220 –    68.5
380 290 308 3 3 1888 5835 FC5676290 – 100
390 220 312 3 3 1600 4730 FC5678220 672756Q 294 362 376 2.5 2.5 86.2
390 240 312 3 3 1763 5235 FC5678240 – 294 362 376 2.5 2.5 93.4
390 275 308 3 3 2250 6500 FCD5678275 – 293 363 377 2 2 105.1
400 285 316 3 3 3200 7500 FCD5680285 – 121
410 300 313 4 4 3590 7650 FCD5682300 – 294 378 396 2.5 2.5 132
420 280 318 4 4 2430 6350 FCD5684280 – 143.4
420 300 319 4 4 3540 7500 FCD5684300 – 151
290 410 240 320 4 4 2070 5670 FC5882240 672758 304 380 396 3 3 105
300 420 218 332 4 4 2060 5695 FC6084218 – 314 390 406 2.5 2.5 97
420 240 332 4 4 2225 5750 FCD6084240 – 314 392 406 3 3 107
420 300 332 3 3 2305 6565 FCD6084300 – 314 392 406 2.5 2.5 134.7
320 440 240 351 3 3 2120 6101 FC6488240 – 335 411 425 2.5 2.5 113.9
440 300 352 3 3 2530 7660 FCD6488300 – 335 409 425 2.5 2.5 142.3
450 240 355 4 4 2145 5860 FCD6490240 – 335 419 435 2.5 2.5 125.3
460 240 355 4 4 2980 7340 FCD6492240 – 335 428 445 2.5 2.5 140
460 280 357 3 3 2450 6534 FC6492280 – 335 428 445 2.5 2.5 159
460 300 360 4 4 3640 9700 FCD6492300 – 335 428 445 2.5 2.5 166.5
460 340 360 3 3 2895 8105 FCD6492340 – 335 428 445 2.5 2.5 193.1
480 290 364 4 4 3580 7400 FCDP6496290 – 346 462 466 3 3 200
480 350 364 4 4 3790 10500 FCDP6496350 – 346 462 466 3 3 227
330 460 340 365 4 4 3760 8265 FCD6692340 – 344 428 446 2 2 175
340 450 250 368 3 3 2299 6312 FC6890250 – 354 424 436 2 2 111.2
450 250 368 3 3 2045 6134 FCD6890250 – 354 424 436 2 2 112.6
460 260 370 4 4 2132 5977 FC6892260 – 128.2
480 350 378 4 4 3790 10500 FCD6896350 – 355 446 465 2.5 2.5 207
500 370 385 4 4 5350 12000 FCDP68100370 – 263
560 380 396 40 4 6930 13100 FCDP68112380 – 352
350 500 380 389 5 5 4290 11700 FCD70100380 672770 363 464 487 2 2 242
500 410 388 4 4 5950 13950 FCD70100410 – 363 464 487 2 2 287
520 300 401 5 5 3860 9000 FCD70104300 – 220
360 500 250 394 3 3 2940 6740 FCD72100250 – 143
510 370 399 4 4 4010 10700 FCD72102370 – 377 470 493 3 3 273
370 520 380 409 4 4 4900 10750 FCD74104380 672974 389 481 500 3 3 263
520 380 409 4 4 4160 12312 FCDP74104380 – 389 481 500 3 3 261
520 400 409 4 4 4140 11200 FCD74104400 – 389 481 500 3 3 267
540 400 415 4 4 3970 11240 FCD74108400 672774 387 499 523 3 3 322.4
380 520 280 426 4 4 2910 7360 FCD76104280 – 186
540 260 428 4 4 3480 8820 FCDP76108260 – 205
540 300 421 4 4 5120 11220 FCDP76108300 – 222
540 380 422 4 4 3766 10930 FCD76108380 – 397 502 523 3 3 290.9
540 400 422 4 4 4800 12000 FCD76108400 672776 397 502 523 3 3 305
540 400 422 4 4 5140 14000 FCDP76108400 – 397 502 523 3 3 305
560 300 424 4 4 5050 9850 FCDP76112300 – 261
560 325 428 4 4 5330 10810 FCDP76112325 – 265
390 540 320 431 10×20° 2 4750 12200 FCDP78108320 – 230
460 650 355 509.5 5 5 6400 14900 FCDP92130355
650 424 510 12×20° 3 7000 18300 FCDP92130424 – 450
650 470 509 5 5 7900 22400 FCDP92130470 – 484 609 626 4 4 510
680 400 518 6 6 8250 17620 FCDP92136400 – 642
480 620 420 514 6 6 6540 21000 FCDP96124420 – 332
650 450 525 6 6 7420 21200 FCDP96130450 – 500 610 630 4 4 440
680 420 528 5 5 7500 19300 FCDP96136420 – 515
680 500 532 5 5 7323 24000 FCDP96136500 – 500 632 660 4 4 605
500 650 260 542 6 6 4100 10400 FCDP100136260 – 225
670 450 540 5 5 5343 17490 FCDP100134450 6728/500Y 520 629 650 4 4 460
680 405 550 6 6 5495 16570 FCD100136405 – 520 634 660 4 4 453
680 450 550 5 5 7420 22000 FCDP100136450 – 520 634 660 4 4 500
710 480 558 5 5 7920 21600 FCD100142480 – 610
720 400 558 6 3 7120 17600 FCD100144400 – 530
720 530 568 6 6 9720 19890 FCD100144530 – 755
510 680 500 560 7.5×20° 5 8070 26000 FCDP102136500 – 522
730 520 569 6 6 8560 22000 FCD102146520 – 750
760 550 570 16×20° 3 10800 26500 FCDP102152550 – 950
520 670 450 560 6 6 7420 24000 FCDP104134450 – 402
530 760 520 587 6 6 10530 28500 FCDP106152520 – 775
780 500 591 6 6 8410 20400 FCD106156500 – 805
780 570 595 6 6 11520 32500 FCDP106156570 – 555 719 755 5 5 960
550 740 510 600 6 6 7769 27000 FCDP110148510 – 615
800 520 612 6 6 10530 26500 FCDP110160520 – 895
800 560 610 6 6 10890 28000 FC110160560 – 930
560 820 600 625 6 6 14400 34800 FCDP112164600 – 577 757 803 4 4 1085
820 630 625 6 6 15600 33900 FCDP112164630 – 577 757 803 4 4 1160
570 750 530 622 5 5 6745 25200 FCD114150530 6727/570 662.5
815 594 628 6 6 13400 33550 FCDP114163594 – 595 757 790 4 4 1003
820 450 654 6 6 11000 30000 FCDP120164450 – 721
820 575 660 6 6 11700 35100 FCDP120164575 – 939
600 870 540 672 22×20° 4 11800 31500 FCDP120174540 – 1100
870 640 682 6 6 13600 41700 FCDP120174640 – 1370
610 820 430 665 19×20° 3 8400 23600 FCDP122164430 – 650
630 900 670 698 6 6 15900 41400 FCDP126180670 – 1430
650 900 650 704 7.5 7.5 15480 41500 FCDP130180650 – 1260
920 670 723 7.5 7.5 15480 46500 FCDP130184670 – 680 856 890 6 6 1450
660 820 440 702 7.5 4 6730 22800 FCD132164440 – 530
880 450 727 6 6 5546 23600 FCD132176450 – 785
670 950 700 750 7.5 7.5 16400 50300 FCDP134190700 – 1630
680 940 600 743 4 4 16900 53400 FCDP136188600 – 1380
980 640 760 20×20° 4 13230 41800 FCDP136196640 – 1590
690 980 715 767.5 7.5 7.5 17820 51300 FCDP138196715 – 720 911.5 950 4 4 1780
980 750 766 7.5 7.5 17000 53000 FCDP138196750 – 720 910 954 6 6 1880
700 930 620 763 18×20° 7.5 11600 40850 FCDP140186620 – 1180
980 700 774 6 6 17800 48200 FCDP140196700 – 726 914 954 5 5 1720
710 1000 715 787.5 7.5 7.5 15400 53200 FCDP142200715 – 1860
720 980 700 772 7.5 7.5 14540 51300 FCDP144196700 – 1545
730 940 500 780 3 3 10150 42500 FCDP146188500 – 1000
960 620 790 7.5 7.5 11800 48750 FCDP146192620 – 1220
1030 750 809 7.5 7.5 16000 55500 FCDP146206750 – 2040
750 1000 500 816 6 6 9460 32000 FCD150200500 – 1150
1000 670 813 7.5 7.5 13500 47500 FCDP150200670 – 1480
760 1080 790 846 7.5 7.5 18690 62430 FCDP152216790 – 787 1005 1053 5 5 2445
780 1070 780 853 7.5 7.5 17200 57900 FCDP156214780 – 2300
800 1080 700 878 7.5 7.5 15200 55500 FCDP160216700 – 827 1010 1050 5 5 1950
1150 850 905 7.5 7.5 21000 76600 FCDP160230850 – 3150
820 1130 800 903 7.5 7.5 18600 64600 FCDP164226800 – 2540
850 1150 840 928 7.5 7.5 19600 72009 FCDP170230840 – 875 1088 1130 5 5 2570
1180 850 940 7.5 7.5 20100 72700 FCDP170236850 – 881 1104 1149 6 6 2850
1220 900 940 5 5 23000 84000 FCDP170244900 – 3720
900 1220 840 989 7.5 7.5 20300 76000 FCDP180244840 – 931 1145 1190 5 5 3060
1280 930 1000 7.5 7.5 25300 88350 FCDP180256930 – 4080
950 1300 850 1044 5 5 22168 81318 FCDP190260850 6727/950Y 980 1210 1270 5 5 3505
950 1360 975 1075 26×20° 7.5 26200 90000 FCDP190272975 – 4900
1360 1000 1075 22×20° 7.5 29200 99000 FCDP1902721000 – 5020
980 1310 880 1061.7 20×20° 7.5 22000 82000 FCDP196262880 – 3310
1000 1360 800 1101 23×20° 7.5 22000 80000 FCDP200272800 – 3560
1040 1440 1000 1133 27×20° 7.5 34200 51300 FCDP2082881000 – 5100
1200 1590 1050 1305 30×20° 6 37620 120600 FCDP2403181050 – 5970
1300 1655 880 1391 7.5 7.5 33660 109800 FCDP260331880 – 4800
1350 1765 1360 1457 42×20° 7.5 36180 109800 FCDP2703531360 – 9100
1400 1780 1200 1493 40×20° 9.5 47070 146700 FCDP2803561200 – 7400
1900 1360 1521 40×20° 12 55440 164700 FCDP2803801360 – 11300

Reviews

There are no reviews yet.

Be the first to review “Four Row Cylindrical Roller Bearings”

Related products

Quick View

Cylindrical roller bearings

Double Row Cylindrical Roller Bearings

Quick View

Cylindrical roller bearings

Single Row Cylindrical Roller Bearings
